CHINA HEAVY LIFT manufacture Heavy-duty Modular Trailers Fully Compatible with original Germany Goldhofer THP/SL
Email : yoko@chinaheavylift.com
Tel : +86 137 7422 2241 (Wechat, WhatsApp)
As the leading manufacturer of heavy-duty modular trailers and hydrostatically powered self propelled modular transporters (SPMT), CHINA HEAVY LIFT has set itself the goal of developing individual cost-effective solutions for customers whose business involves transporting loads weighing between 50t and over 10,000t. We have accordingly been committed to the continuous further development of our internationally acclaimed modular systems since 2003, which are deployed for all kinds of transport operations under the most demanding conditions. Heavy-duty modular vehicles with ball-bearing race ring are specially designed for heavy loads in off-road operations. The sturdy engineering and high bending moment guarantee excellent and safe performance on the most uneven terrain.
As the leading manufacturer of heavy-duty modular trailers and hydrostatically powered self propelled modular transporters (SPMT), CHINA HEAVY LIFT has set itself the goal of developing individual cost-effective solutions for customers whose business involves transporting loads weighing between 50t and over 10,000t. We have accordingly been committed to the continuous further development of our internationally acclaimed modular systems since 2003, which are deployed for all kinds of transport operations under the most demanding conditions. Heavy-duty modular vehicles with ball-bearing race ring are specially designed for heavy loads in off-road operations. The sturdy engineering and high bending moment guarantee excellent and safe performance on the most uneven terrain.
 |

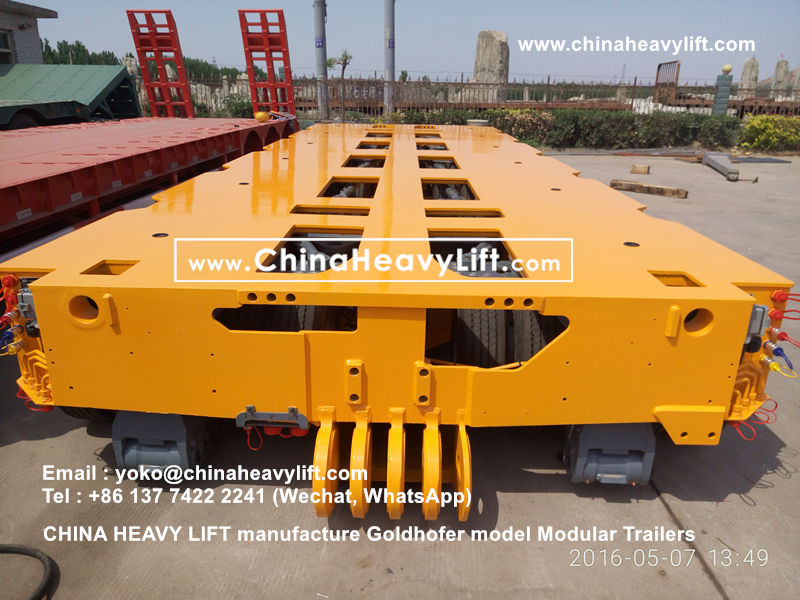

| CHINA HEAVY LIFT Manufacture Hydraulic Modular Trailer Fully Compatible with original Germany Goldhofer THP/SL, www.chinaheavylift.com/goldhofer-modular-trailer |
capacity 45 tons/axle line, 1,175 ± 300 mm height and 2,990 mm width, axle base 1,500 mm with S690 high tensile structure steel, robust and durable construction with high bending moment, high concentrated load bearing capacity
| Technical specification Capacity | Goldhofer heavy duty modules 45 Tons/axle line @0.5km/h | ||
| Dead weight | 3.5 Tons/axle line | ||
| Material | S690 high tensile steel | ||
| Platform height (mm) | 1,175 ± 300 | ||
| Wheelbase (mm) | 1,500 | ||
| Tire | 215/75 R17.5 8 tires / axle line | ||
| Approach / Departure angle | 25° / 28° | ||
| Support mode of platform | 3 points and 4 points | ||
| Max.steering angle of first wheel | + / – 55° in all ride heights | ||
|
• Fully coupled with original Goldhofer THP/SL modular trailer
• Length and cross combination module
• Box-shaped center frame with integrated air and hydraulic oil tank
• High point load in the center tube and the closed outer fields
• Front and rear bolt-clutch for longitudinal combinations
• Pendant axle aggregate at swivel head mounted the vehicle frame
• Hydro-pneumatic gas pressure accumulator suspension
• Hose rupture safety valve on all axle aggregates
• Integrated Chassis, hydro-mechanical 2-circuit all wheel steering
• Maximum steering + / – 55° in all ride heights
• Steering in middle 1 pair of integrated steering cylinder in frame
• 2-line all-wheel air brakes and spring-loaded parking brake
• Complete 4-way piping for optimum combination of the modules
 |
